CX-Industrial PC with Windows 10 for TwinCat 2

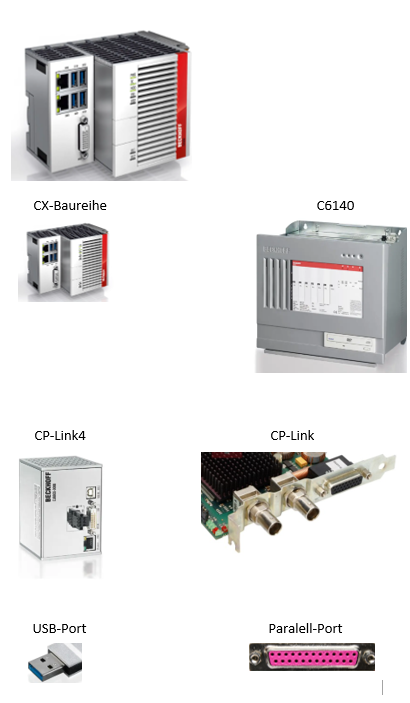

For the discontinued C6140 industrial PC, Beckhoff launched a replacement PC of the CX series with Windows 10 32Bit in spring 2024. The new CX-PC was designed by Beckhoff for the continued support of TwinCat2 projects.
System adaptation touch panel CP-Link to CP-Link4
However, the switch to the CX-PC brings with it a system adjustment. The touch panel with the already outdated CP-Link technology must be replaced by a current touch panel with CP-Link4 technology. This requires the installation of a transmitter box in the control cabinet and the insertion of a new cable to the control panel.
Visualization of security dongle and Citect versions
Older systems still have a safety dongle with a parallel port interface. This interface is to be replaced by a USB dongle. We install the CX-PC with the required Citect version.
Summary:
Hardware
- New Beckhoff industrial PC of the CX series.
- New touch panel with the latest CP-Link4 technology.
- New transmitter box
Software
- Operating System > Windows 10.
- Beckhoff > TwinCat 2
- Visualisierung > existing installed Citect version
Visualization / Dongle
- If the security dongle for visualization is designed with a parallel interface, it must be replaced by a USB version.
Installation & cabel
- Installation of the PC on DIN rail in the control cabinet.
- Installation of the transmitter box in the control cabinet for the new touch panel.
- Installation of the touch panel in the control panel with a new front plate.
- New connection cable from transmitter box to touch panel.
